In many grain processing plants, the packaging machine itself isn’t the actual bottleneck. The real headaches often come from unstable feeding, weight drift, airborne dust, and seal failures after long production hours. If you run a 24/7 milling or seed processing line, you need more than good-looking specs. You need a system built to handle the harsh factory floor.
An unreliable grain packaging machine does not free up labor. It becomes a maintenance nightmare. It also causes frequent downtime for cleaning and calibration. The shop floor bottlenecks: root.
Causes and Engineering Fixes
Many plant managers find their automatic grain packing machine stops, not from major motor failures. It stops due to minor feeding errors and unstable sync issues. These issues reduce overall equipment effectiveness (OEE).
1. Material Degradation and Clogging vs. Synchronized Feeding
Raw grains, especially polished rice, wheat, and high-value hybrids, are highly sensitive to friction and mechanical impact during transit. Standard augers or rigid scrapers break brittle kernels—directly degrading your finished product quality. Worse, they frequently seize when handling damp or high-husk materials.
To prevent grain breakage, a heavy-duty Z type bucket conveyor must be properly integrated with the packing unit. But a standard bucket elevator isn't enough. For continuous operation, the system requires:
Bucket Speed Synchronization: The conveyor's variable frequency drive (VFD) must link directly to the packaging machine's master PLC. If the packing line slows down, the bucket speed scales back instantly to prevent over-feeding.
Anti-Spill Hopper Design: Overlapping polyurethane buckets with custom inlet shrouds eliminate material spillage at the transition points, keeping the factory floor clean.
2. Weighing Drift and Profit Bleeding vs. Vibration Isolation
During an intensive 24-hour shift, floor vibrations from nearby milling equipment, temperature swings, and microscopic dust accumulation on load cells cause electronic scales to experience "weighing drift."
The True Cost of Scale Drift:
If an automatic bag weighing and filling machine overfills each pouch by just 5 grams due to drift, it wastes product. A mid-sized line that packs 10,000 bags a day will give away 1.5 tons of finished product each month.
To lock down your margins, high-volume lines rely on a multi head weigher. By using a multi head weigher, a granule packaging machine can cut product giveaway to under one gram per bag. This can save companies thousands of dollars in lost inventory over time.
However, to make this work in a real factory, you must implement vibration isolation structural frames. Separating the scale mounting platform from the main VFFS frame stops shock from the heavy pneumatic sealing jaws. This keeps the load cells stable and helps prevent product giveaway from weighing drift.
Commodity-Specific Engineering: Rice vs. Seed Processing

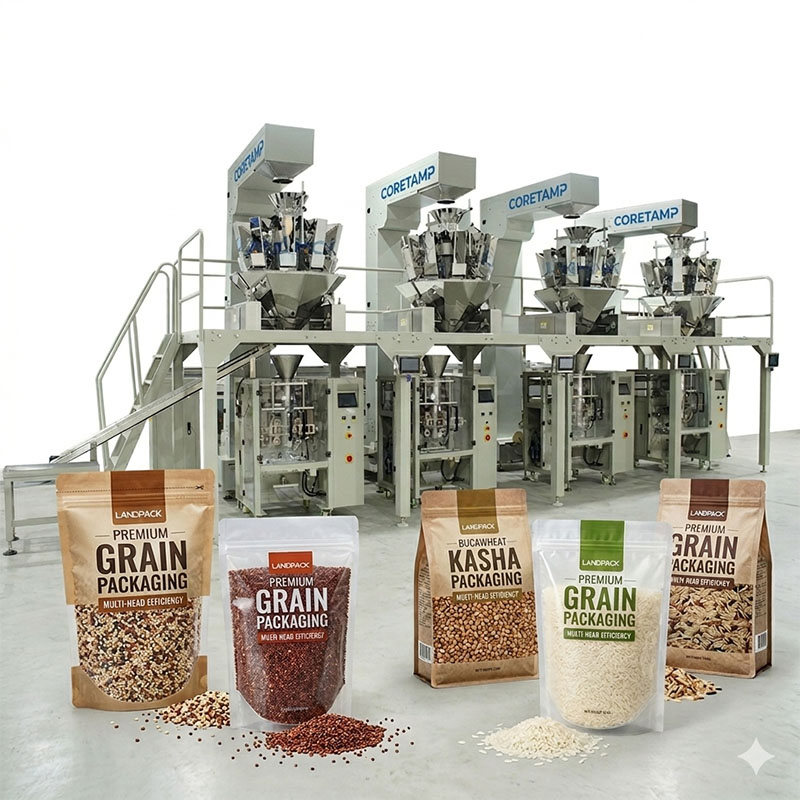

A generic grain bagging machine will always struggle because different granular products present entirely distinct mechanical behaviors on the line.
Rice Packaging: Tackling Bran Dust and Sealing Integrity
When running a high-speed rice packaging machine, the friction between grains generates highly abrasive fine bran dust. This dust migrates into the sealing jaws.
If the heating element presses on a dust layer, it can cause channel leaks. This can break the seal and burst bags during palletizing and transit. The solution uses dual-axis, servo-driven sealing jaws with a built-in dust-extraction snout at the filling tube. It clears the seal area before heat is applied.
Seed Packaging: Eliminating Cross-Contamination and Shortening Washdowns
For a seed packaging machine, the primary operational metrics are cleaning time and cross-contamination prevention. Agricultural seeds are treated with chemical fungicides and represent high-value inventory. If the machine hoppers contain internal crevices, operators spend hours on manual cleanups during a product changeover. True seed-grade lines utilize toolless, quick-disconnect radial hoppers and dimpled stainless steel surfaces to reduce downtime during batch swaps.
Handling Heavy Loads: The 5 kg Grain Pack Machine
Moving from retail pouches to bulk retail requires a dedicated 5 kg grain pack machine. Dropping 5 kg of heavy grain into a bag puts major stress on the packaging film and the machine's jaw assembly.
Dropping that much mass vertically will split a hot, freshly made bottom seal instantly. A rugged 5kg system solves this with a pneumatic bag-support shelf.
It rises to cradle the pouch base at the exact moment of the drop. Combined with wide-surface, heavy-duty sealing cylinders, this setup delivers high clamping pressure. It helps create a stable seal on thick, multi-layer laminated films.
What to Check Before Buying a Grain Packaging Machine
When evaluating grain packaging machine suppliers or requesting a quote, look past the initial price. Verify these key technical specifications to ensure long-term reliability.
Steel Grade: Demand SUS304 for all contact parts (SUS316 for treated seeds). Anything less will rust or pit under abrasive grain husks and chemical coatings within two years.
PLC Brand: Restrict to Siemens, Omron, or Mitsubishi. Avoid proprietary or no-name controllers, or you will face permanent downtime when debugging or sourcing components.
Jaw Drive: Specify Full-Servo or Pneumatic. Reject outdated mechanical cam linkages. Servos are mandatory to dynamically adjust seal pressure and dwell time for variable film thicknesses.
Dust Ports: Ensure the forming tube includes pre-drilled dust extraction ports. Integrating dust extraction into your grain packaging machine ensures cleaner operation, reduces maintenance downtime, and maintains consistent sealing quality across long production runs.
